Erocdrills DTH bits
The DTH bits is the tool cutting rock. Erocdrills DTH bits are made of superior quality alloy steel which is made by Timken in U.S. Besides, all our DTH bits are using the brand "Element Six" T.C carbide which provides (the T.C buttons) for Boart Longyear. In addition art manufacturing technology makes our DTH bits with higher and more reliable quality.
Different face style makes DTH bits suitable for various rock conditions.
Flat face: This is an universal design, especially for hard and abrasive rock formation. So typically, flat face with hemi-spherical buttons design is the most popular choice.
Convex face: A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.
Concave face: Medium hard to hard rock formations which is less abrasive and fractured. Especially for deep hole drilling, excellent control over hole deviation.
DGR face: A special design for hard or very hard rock conditions, double gauge row buttons provide very excellent ware-resistance and very longer life time. It is usually used for some bigger diameter DTH bits.
Besides, we are manufacturing the DTH bits with various shanks so they can be compatible with different DTH hammers
Bit size | Shank type | Recommended DTH bir diameter |
3.5''/3'' DTH Hammer bits | COP34, DHD3.5, MISSION30, BR3 shank | 90mm to 105mm |

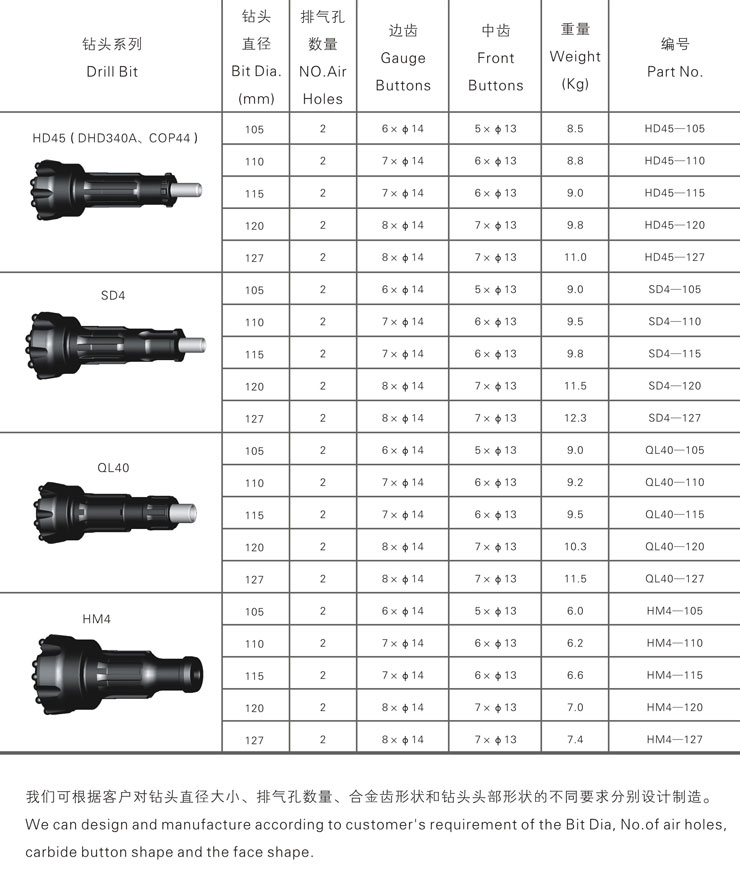

4'' DTH Hammer bits | DHD340, QL40, MISSION40, SD4 shank | 110mm to 130mm |
5'' DTH Hammer bits | DHD350, QL50, MISSION50, SD5 shank | 134mm tio 152mm |

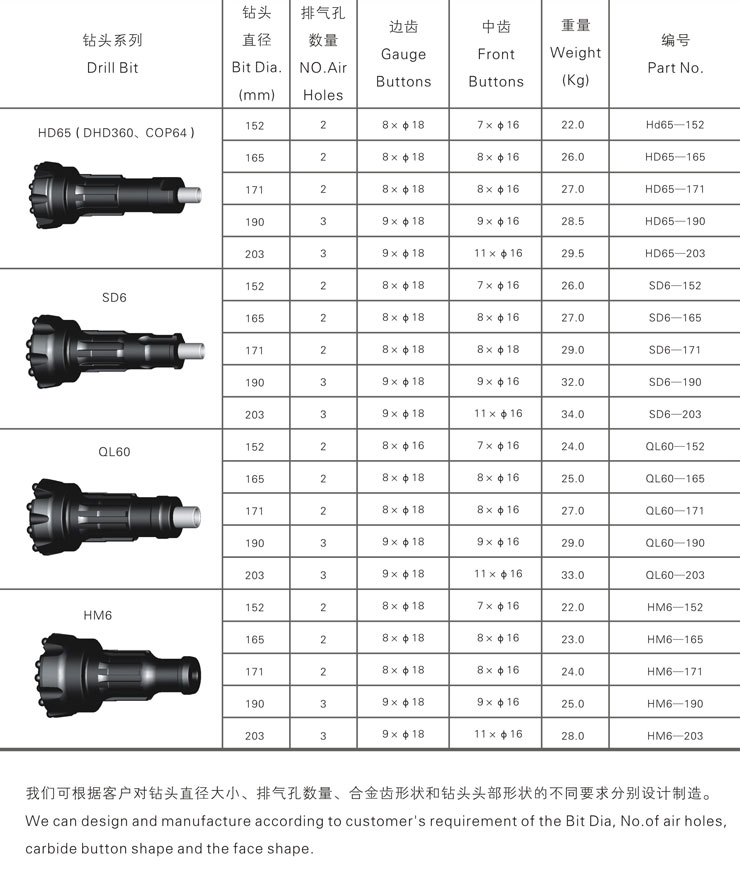

6'' DTH Hammer bits | DHD360, QL60, MISSION60, SD6 shank | 152mm to 203mm |

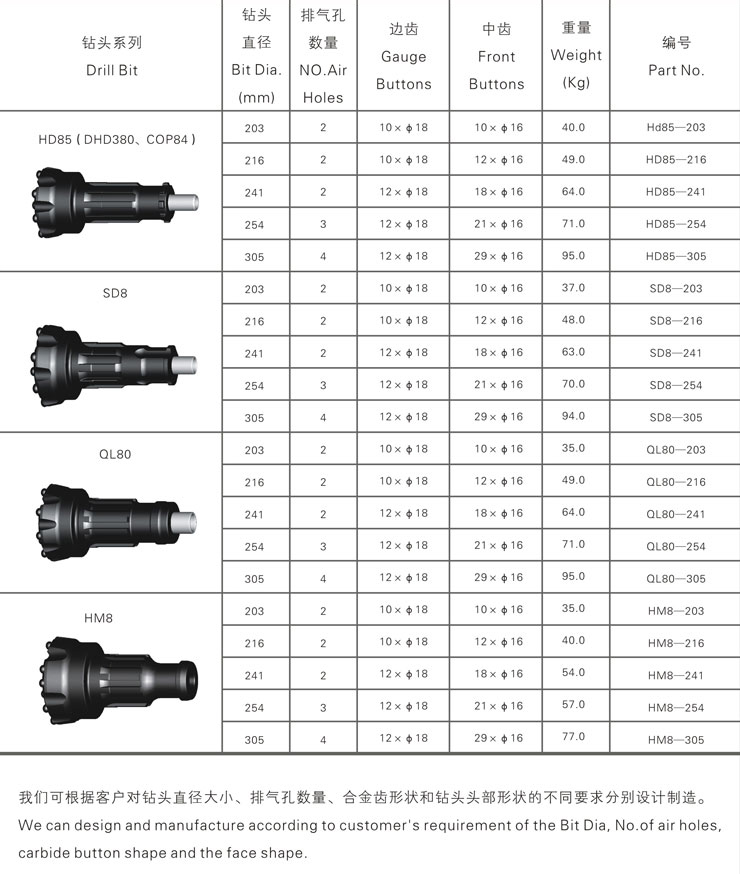

8'' DTH Hammer bits | DHD380, QL80, MISSION80, SD8 shank | 203mm to 305mm |
12'' DTH Hammer bits | DHD112, SD12 and QL120 shank | Available upon to customers' request |
